We are delighted to offer a personal demonstration of this machine in our exclusive Harvey workshop. Please contact us for an appointment and to understand why we are excited to be working with Harvey.

The ALPHA HW110SE-36 Table Saw is engineered and built to the highest quality standards, incorporating technological innovations that provide the highest level of performance, precision and reliability for both the professional and hobbyist woodworker.

With a powerful 2.2kW (3hp) braked single phase motor and industrial grade 10" (250mm) diameter saw blade running at 4000rpm, the HW110SE-36 provides effortless, accurate cuts every time.

Features

Smooth ground 'Stain-less' nickel-plated cast-iron rust-proof table
Precision BIG EYE Dual Lock Rip Fence with micro adjustment and 4 flip position stops
Fully adjustable dual position high/low fence with preset measure for both settings
K9 crystal glass window viewer to reduce parallax when reading the mm scale
MG-36Pro COMPASS Sliding Mitre Gauge with 11 precision stops
Unique dovetail structured trunnion system rust-proof (nickel-plated)
45 degrees tilt arbor tilting to the left
Powerful 2.2kW output motor (16amp required)
Quick release riving knife
Industrial 10" (250mm) diameter ATB Leitz general-purpose blade
Transparent blade guard with dust control
Simultaneous above and below dust extraction
NVR safety switch with thermal protection
Dado ready
Optional Sliding Table: COMPASS ST-1500
2-year warranty

Nickel-Plated Cast Iron Table

The smooth ground 800 x 1120mm cast iron table and trunnion have undergone a chemical nickel-plating process bonding the nickel layer thickly to the base material, significantly enhancing its durability and resistance to corrosion and wear, keeping your investment in perfect condition inside and out. The tabletop also features two 19mm mitre tracks, one each side of the saw blade.

BIG EYE Rip Fence System

The best-in-class Big Eye Rip Fence System features eight rollers with bearings that effortlessly glide along the two hardened and ground steel rods with zero clearance, resulting in exceptional accurate fence movement (0.15mm in full length). The roller dial can be used for micro-adjusting the fence position into the desired setting. The ambidextrous fence can be used on the left or right side of the blade and features two K9 crystal glass window viewers. One on each side of the fence depending on which side of the blade you are cutting from. These exceptional quality viewers reduce parallax when reading the mm scale.

MG-36Pro COMPASS Mitre Gauge

Uniquely designed with a Quick-Action positive angle setting device which allows you to set commonly used angles of ±60°, ±45°, ±30°, ±22.5°, ±15°, and with a simple click. Any other angle can also be set and locked. The crosscut fence extends from 570mm to 915mm and is equipped with an accurate flip stop. The mitre bar has 5 adjustable nylon guides along its length to ensure zero deflection in the two tracks, either side of the saw blade. The micro-adjustable flip fence can extend over a sacrificial fence for perfect results every cut.

Unique Dovetail Structured & Nickle-Plated Trunnion

The blade is elevated by a heavy-duty dovetail trunnion system which provides smoothness and greater cutting accuracy, with less vibration. The 45-degree left-leaning blade tilt angle is adjusted by a worm gear trunnion system with massive cast iron block making the blade tilting smoother and more accurate.

Includes

Industrial-Grade Leitz 10" (250mm) general-purpose saw blade
Standard table insert
Zero clearance table insert
Stacked dado table insert
Standard riving knife
Riving knife for non-through cuts
5Mtr cable with 16amp industrial plug

A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.

Harvey Compass ST-1500 Sliding Table

The Compass ST-1500 Sliding Table is the culmination of 10 years of development by Harvey to design an accessory that matches up to the same incredibly high standard already set by their table saws. Made up of an industrial-grade sliding carriage, an extremely accurate crosscut mitre fence system, an innovative work clamp and 2 support legs. It is a perfect additionÂ to the Harvey HW110-SE table saw and is built to satisfy the most demanding woodworkers and meet all their table saw requirements.

Features

Industrial grade sliding carriage with 1200mm (48") capacity
Large surface area for better workpiece stability
Support legs for zero deflection
Extremely accurate crosscut mitre fence
Mitre guide indexing has 7 automatic positive stops
Any other angle can be manually set, accurate to 0.1 degrees
Crosscut fence 1090mm long, extends To 1500mm
2 flip-over stops with micro-adjustments To 0.02mm
COMPASS AH-3T arch hold-down clamp
2-year warranty

Industrial Grade Sliding Carriage

Two V-shape ball-bearing tracks assure accuracy and consistent smoothness along its travel. The travel length is 1500mm (60") giving a maximum crosscut capacity of 1240mm (48"|) and can handle a full-size sheet.

The table measures 228mm x 1200mm (9"x 47"), with an extension table of 228mm x 600mm (9" x 24"). The total table width is therefore 456mm, giving good support for most panel work. When not in use, the sliding carriage can be locked into a static position. A support leg at each end, with adjustable feet,Â guarantees zero flex and deviation whatever the load.

Extremely Accurate Crosscut Mitre Fence

The mitre fence system is designed with a rock-solid Fence Body with extension, a large and sturdy half-moon indexing gauge that has 7 positive stops at -60°, -45°, -22.5°, 0°, +22.5°, +45°, and +60° with 0.02-degree angular accuracy. These preset angles automatically engage with precision thanks to the uniquely designed positive index system consisting of tapered grooves and a spherical locking pin. The mitre gauge can be manually set to any other angle with fine angle tuning to 0.1 degrees.

Crosscut Fence with Micro-Adjustable Flip Stops

The crosscut fence is 1090mm long, fully extending to 1500mm and comes with 2 x flip stop assemblies that can be locked anywhere along the length of the fence. Once locked in place, you can make micro-adjustments in 0.02mm increments.

COMPASS AH-3T Arch Hold Down Clamp

The unique arch structure of the AH-3T hold-down clamp securely clamps the workpiece in place with pure vertical pressure, without pressure deformation and sideways stress on the central shaft, thus achieving the highest level of stability.

The arch hold-down can be used in 2 modes, depending on the thickness of the material to be clamped.

Sawing

Price

Collections

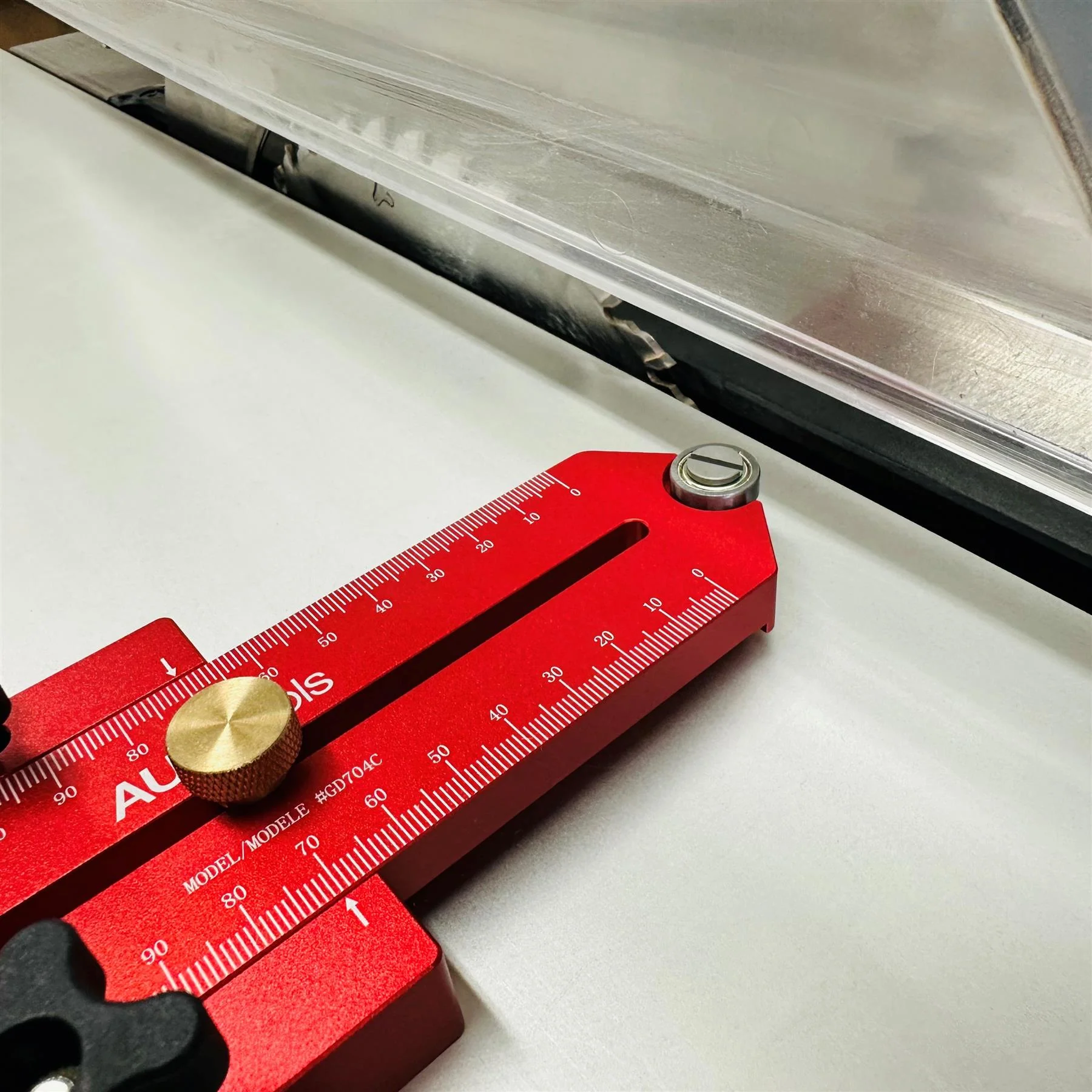

AUKTools Thin Rip Jig
